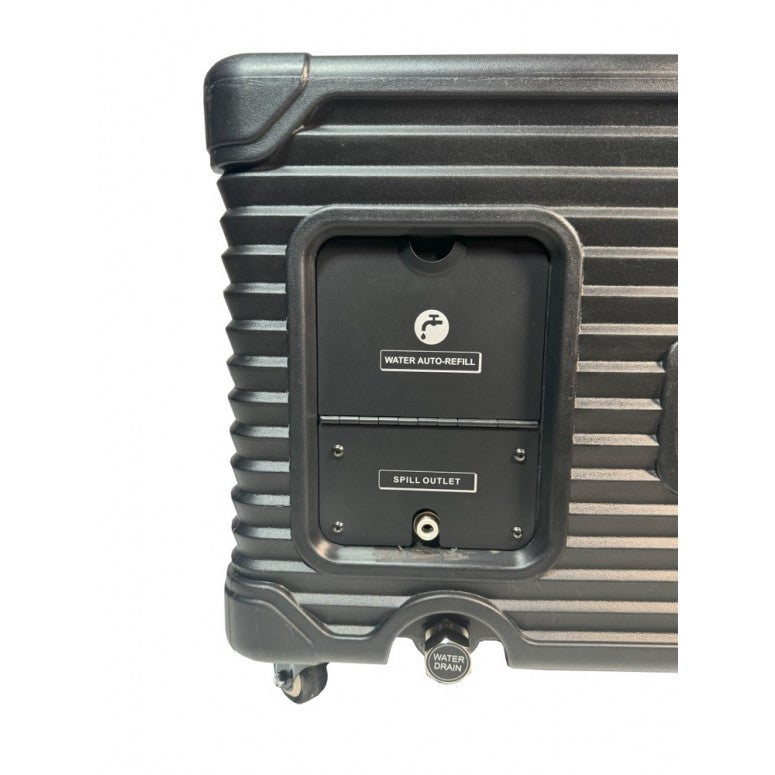

- Advanced Auto Water Refill System
- Multi-Stage Humidity Control
- Complete Fog and Fan Volume Control
- Continuous Operation
- DMX Control
Specifications
Physical
Length: 29 in. Box: 34 in.
Width: 15.4 in. Box: 18.1 in.
Height: 22.64 in. Box: 24 in.
Net Weight: 77 lbs Gross Weight: 94 lbs
Performance
Maximum operating time 100% Output, No Refill: 210 min
Ready time: 3 Secs
Control and Programming

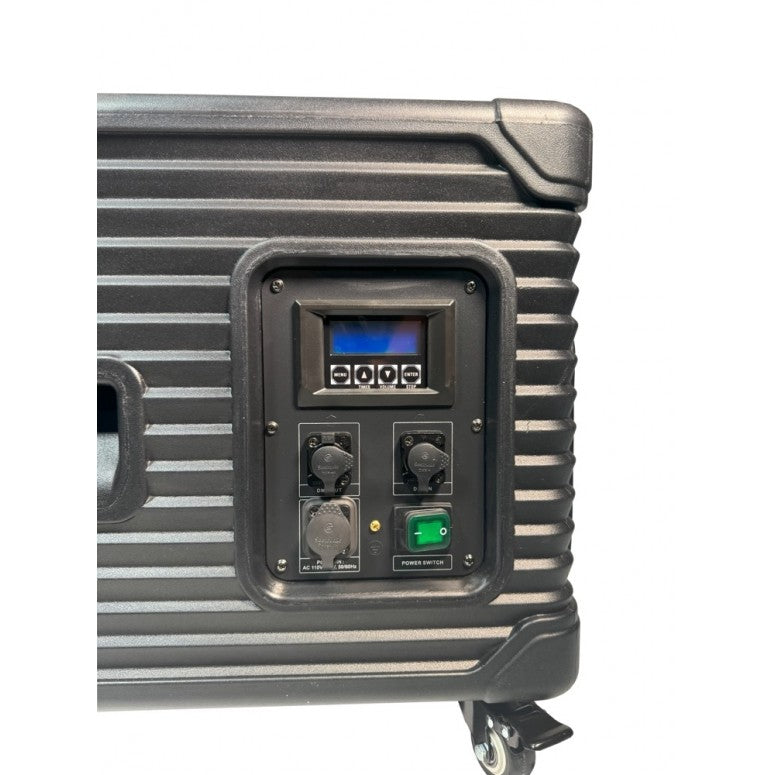

Control options: DMX, LCD Control Panel
DMX channels: 4
External fluid control: Fluid sensing
Construction
Housing: Polymer Cased Metal
Color: Black
Fluid reservoir: 4 Gallon Water Tank
Installation
Mounting: Level Surface
Orientation: Horizontal
AC Power: Seetronic Powerkon IP65
DMX, link mode in/out: 3 and 5-pin locking XLR
Electrical
US Model:AC power: 120 V, 60 Hz
Main fuse: 15A, 250 V
Typical power and current: 800 W
*Measurements made at nominal voltage. Allow for a deviation of +/- 10%.:
Included Items
Machine
Manual
Power input cable: Seetronic® Powerkon IP65
Accessories
*Various sizes available - contact us or see 'Fluids' product pages for details
