A18S

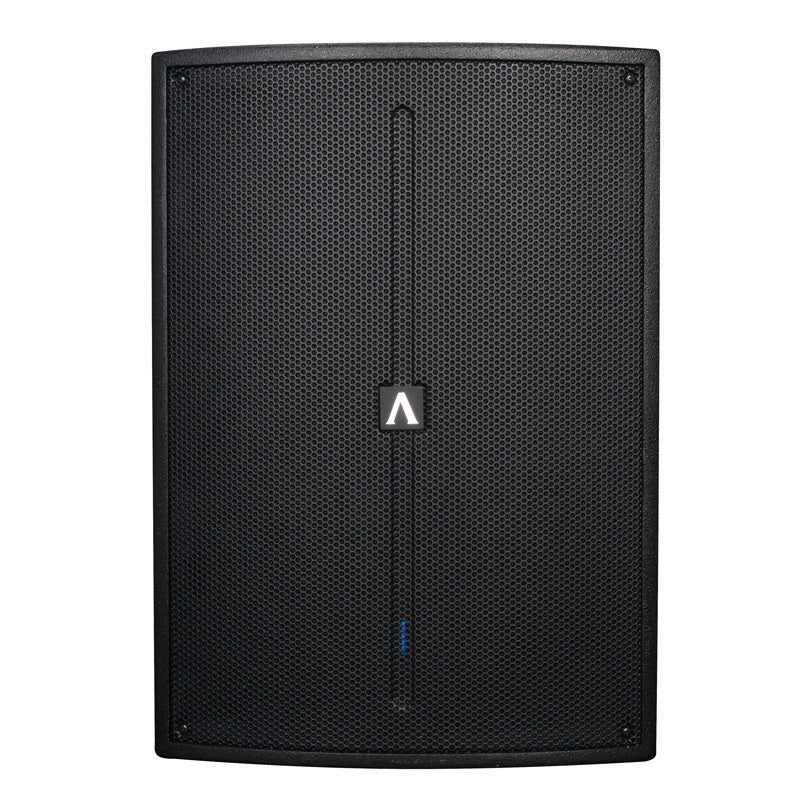

Avante Audio A18S

Achromic Series 18-inch, Active Subwoofer. Built-in Digital Signal Processing (DSP) with LCD screen, EQ & multiple presets.

Specifications

• Amp Power: 1600W Peak; 500W RMS Class D amplifier

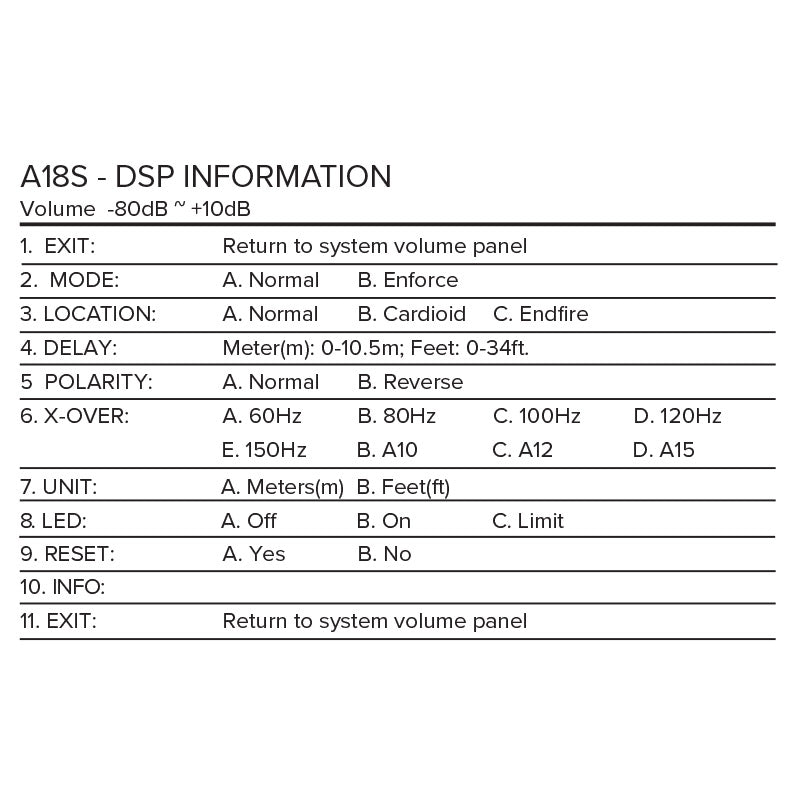

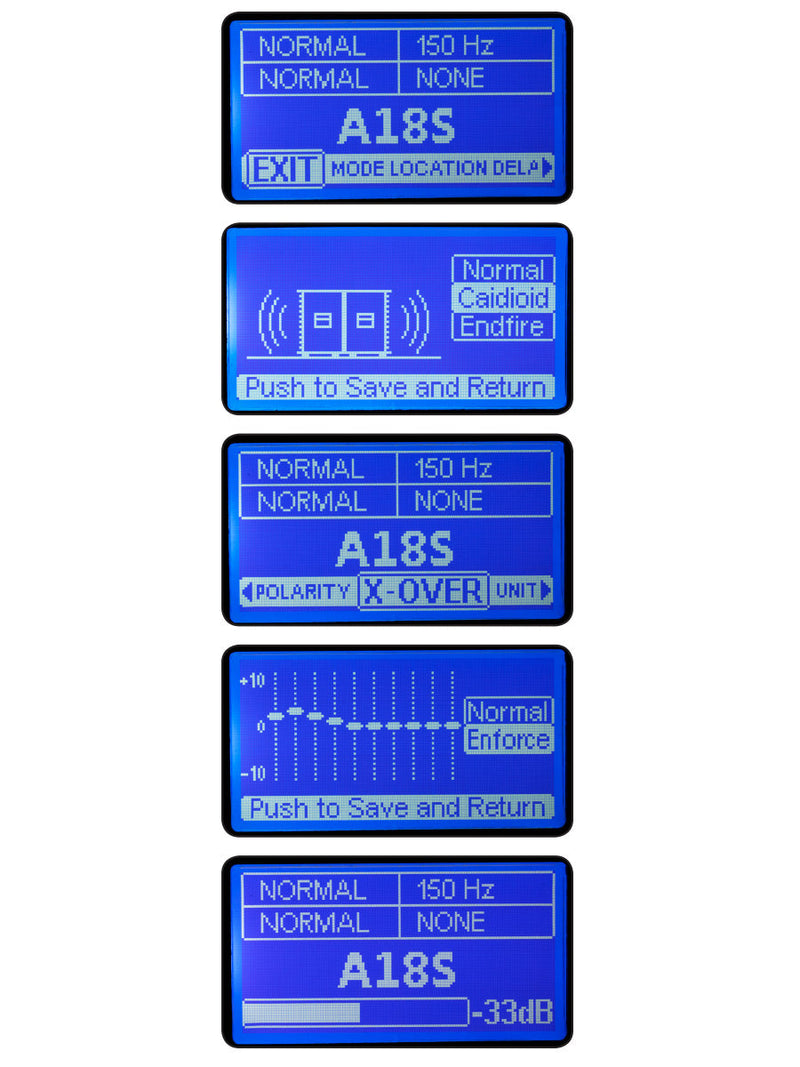

• Built-in Digital Signal Processing (DSP) with LCD screen, EQ multiple presets

• Frequency Range: 35Hz-150Hz

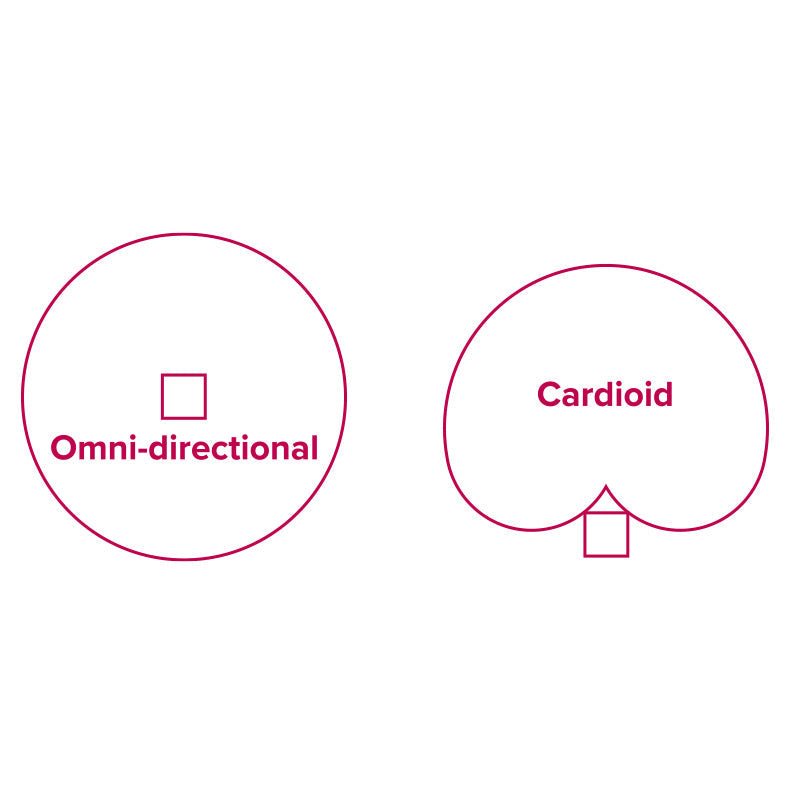

• Nominal Coverage: Omni-direction, cardioid

• Output (Peak SPL @ 1M): 127dB

• Drivers: 18-inch woofer with 3-inch voice coil

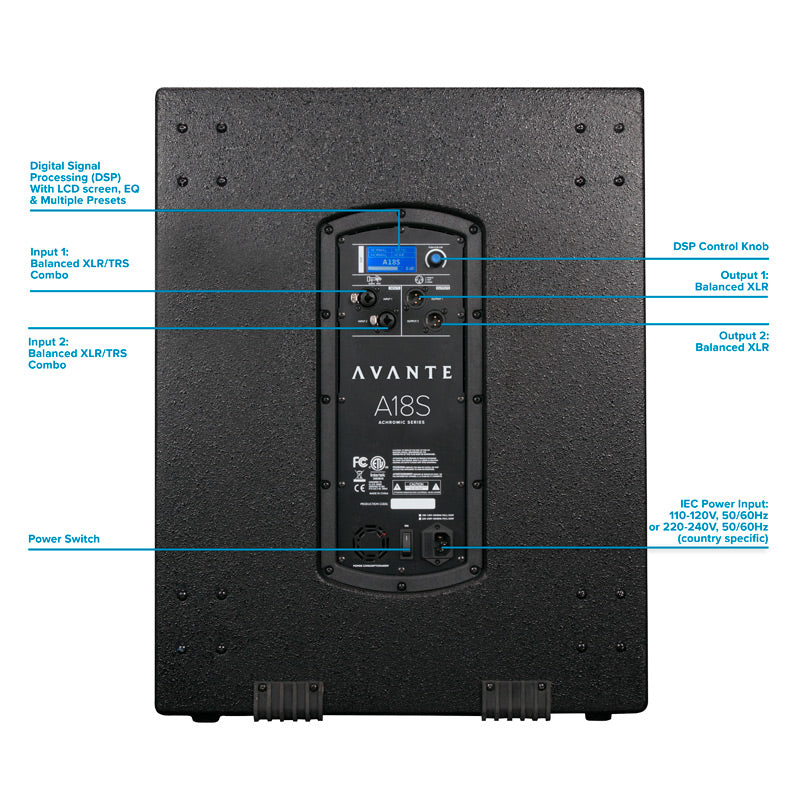

• Inputs: 2x Balanced Female XLR ¼-inch combo jack

• Outputs: 2x Balanced Male XLR

• Enclosures: 15mm Plywood

• Grill: 1.5mm Steel

• Handles: Two: 1 on each side

• Pole Mounting: Ground Stack (includes mounting pole)

• Power Input: 120V/60Hz or 240V/50Hz (country specific)

• Power Consumption: 600W

• Dimensions: 26.1”x20.1”x25.5” / 662x510x647mm

• Weight: 73 lbs. / 33.1 kg.

ACHROMIC Series Speakers User Manual
