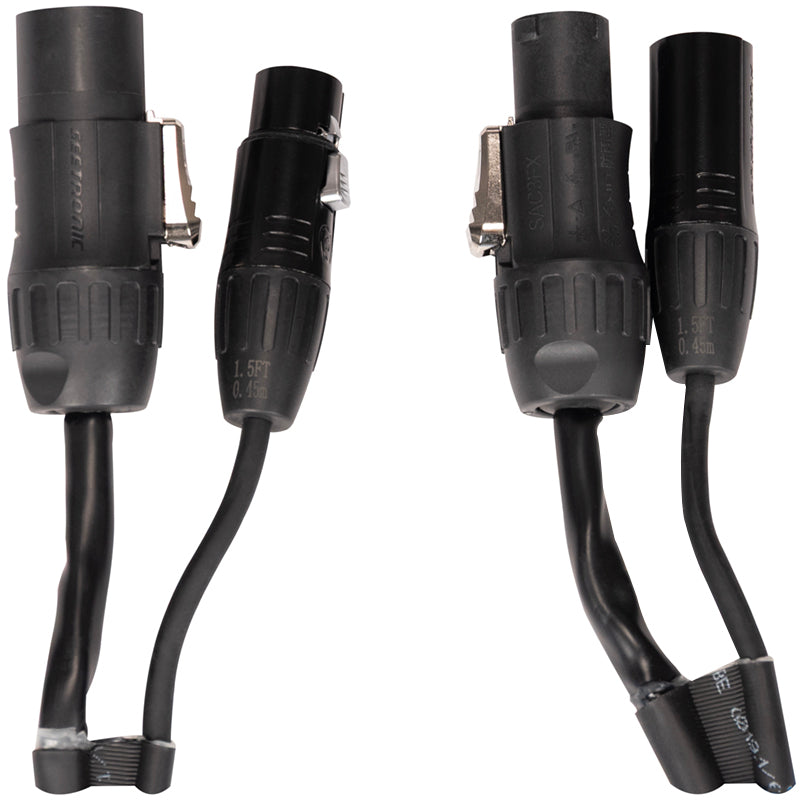

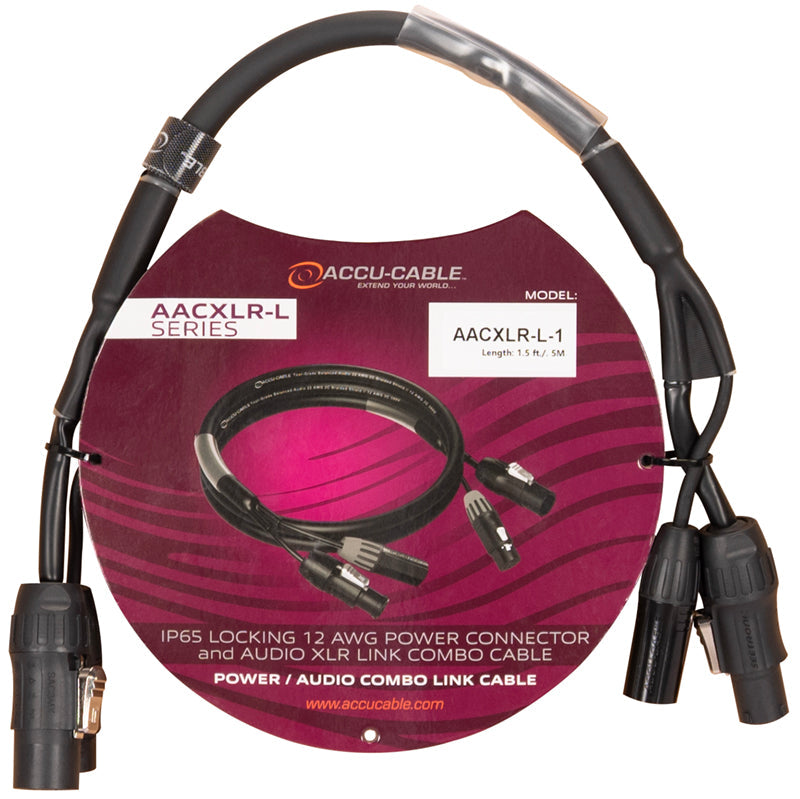

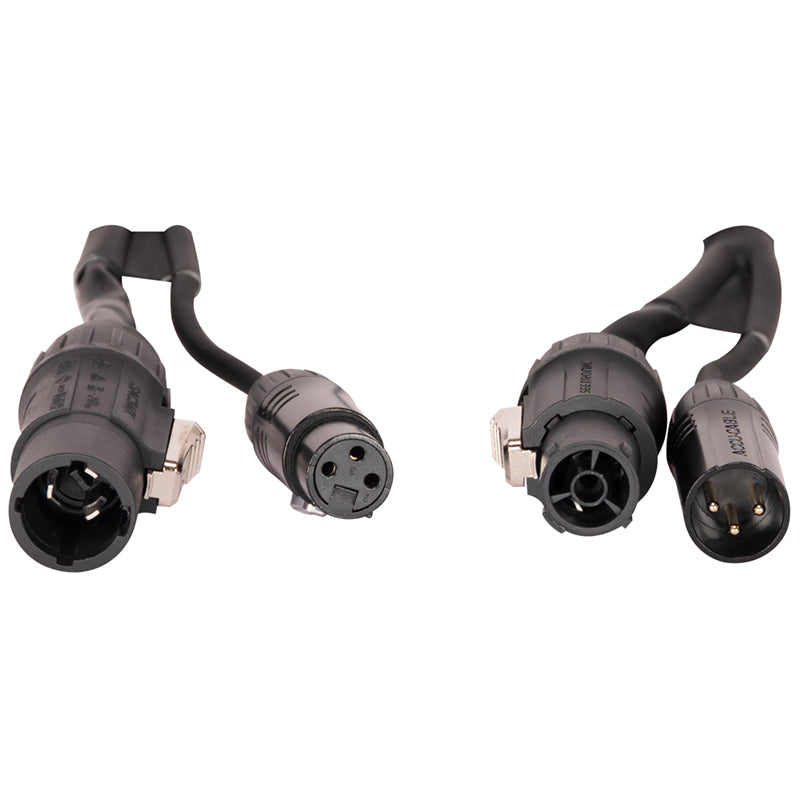

Accu-Cable AACXLR-L-1 Power/Audio Combo Link Cable

The XLR-M to XLR-F audio connection makes it easy to link the audio output of one powered speaker to the input of the next, while the locking IP-M to IP-F power connection passes power between compatible devices. Its short length is ideal for adjacent line-array elements, speaker stacks, floor monitors, and equipment installed closely together.

Built with 20 AWG twisted-pair audio conductors, a braided shield, 12 AWG power conductors, and a flexible 12 mm PVC outer jacket, the AACXLR-L-1 delivers a compact and organized cabling solution for professional audio systems.

• Combines balanced audio and power in one cable
• Designed to link compatible powered speakers
• Reduces the need for separate audio and power cables
• Helps create cleaner stages and installations
• Compact length for closely positioned equipment
• Flexible PVC jacket for easy routing
• Ideal for portable and permanently installed audio systems

Specifications:

• Cable length: 1.5 ft / 0.5 m
• Audio connector A: 3-pin XLR male
• Audio connector B: 3-pin XLR female
• Audio cable: Two-conductor 20 AWG twisted pair
• Audio shielding: Braided shield
• Power connector A: Locking IP male
• Power connector B: Locking IP female
• Power cable: Three-conductor 12 AWG
• Outer jacket: Flexible PVC
• Cable diameter: 12 mm

Recommended Applications:

• Powered speaker stacks
• Line-array elements
• Floor monitors
• Concert and touring systems
• Corporate audiovisual systems
• Houses of worship
• Entertainment venue installations
• Professional audio installations

Specifications are subject to change without notice.
