Avante Audio Imperio Pro T-Adapter Mounting Bracket (IMP224)
Sale price
$44.99
Regular price
$59.95
Unit price
Avante Audio | SKU:
IMP224
Avante Audio Imperio Pro T-Adapter Mounting Bracket (IMP224) is backordered and will ship as soon as it is back in stock.
Description
Description
Avante Audio Imperio Pro T-Adapter Mounting Bracket
(IMP224)

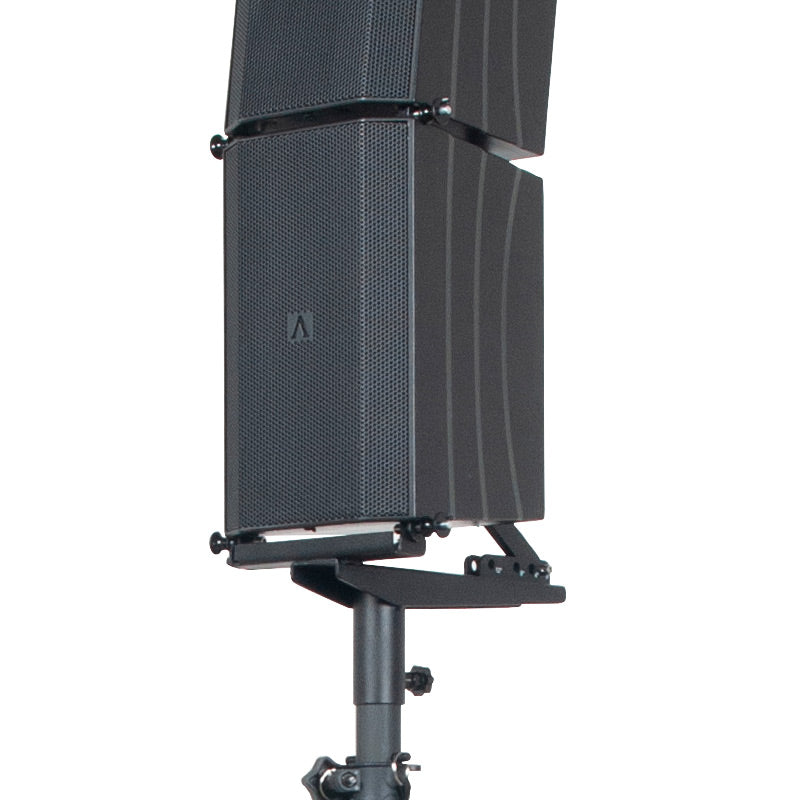

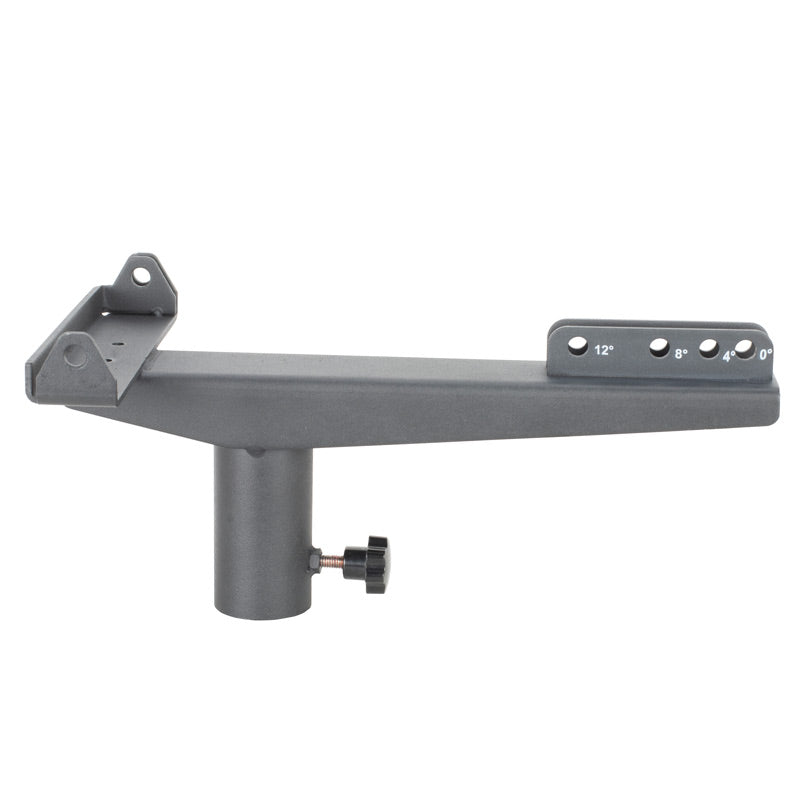

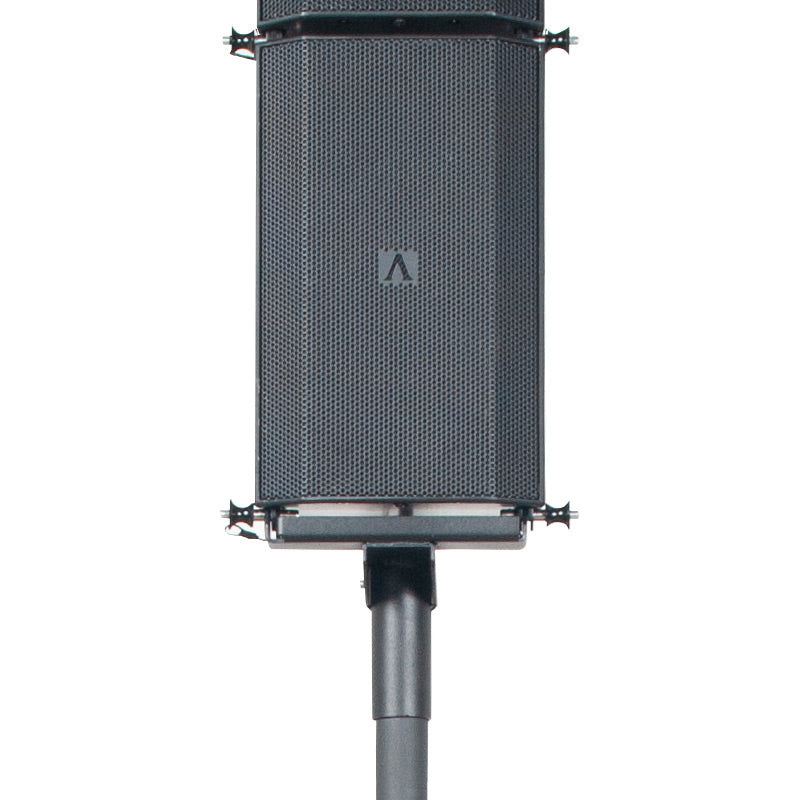

Optimize your line array dispersion with the Avante Audio IMP224 Imperio Pro T-Adapter. Built as a core rigging component for compact loudspeaker configurations, this heavy-duty metal bracket provides a rock-solid mechanical bridge between your mid/high array cabinets and your supporting stand hardware.
Engineered for precision alignment and safety, the IMP224 features a specialized track design that slides perfectly into the integrated rigging channels of your speaker cabinets. It allows you to skip complicated overhead flying grids in favor of a fast, small-footprint pole setup. The rugged construction absorbs heavy cabinet movement and keeps your line array securely balanced, making it a reliable solution for mobile DJs, live event production, and permanent installations.
Key Features & Technical Specifications
- System Compatibility: Fits the Avante Audio Imperio (IMP092) and Imperio Pro IMP205 powered speaker modules.

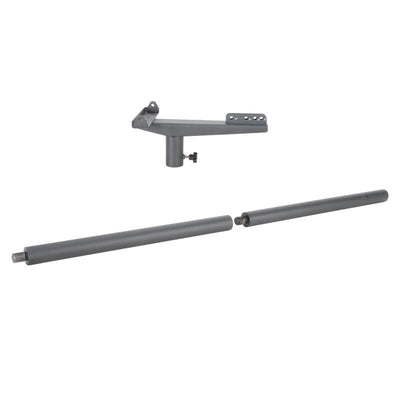

- Hardware Integration: Connects seamlessly with the IMP194 Imperio Pole, IMP211 Imperio Adjustable Pole, and SPL110 Speaker Stand.
- Selectable Tilt Angles: Features built-in locking positions for 0°, 4°, 8°, and 12° of vertical down-tilt.
- Rigging Type: Uses the Imperio Linchpin 4-pin locking system for secure structural attachment.
- Product Weight: 4.0 lbs.
📦 What’s Included
Your package includes the primary adapter hardware:
- (1) Avante Audio IMP224 Imperio Pro T-Adapter Bracket
- (Note: Mounting poles, tripod stands, speakers, and Linchpin locking pins are sold separately)
🛒 Buyer’s Guide: Is the IMP224 Right for You?
🚨 CRITICAL SYSTEM COMPATIBILITY NOTE:
This is a proprietary rigging accessory built exclusively for Avante Audio Imperio series cabinets. While the bottom receiver connects to standard speaker poles and tripod stands, the top mounting track will not work with standard traditional PA speakers that require a standard 35mm pole-cup insert.
This is a proprietary rigging accessory built exclusively for Avante Audio Imperio series cabinets. While the bottom receiver connects to standard speaker poles and tripod stands, the top mounting track will not work with standard traditional PA speakers that require a standard 35mm pole-cup insert.
1. Who is this hardware built for?
This T-adapter is a necessary piece of hardware for live event production companies, traveling performers, and venues using Avante Imperio (IMP092) or Imperio Pro IMP205 mini line array systems. It is ideal for users who want a flexible alternative to hanging their array elements from heavy trussing.
This T-adapter is a necessary piece of hardware for live event production companies, traveling performers, and venues using Avante Imperio (IMP092) or Imperio Pro IMP205 mini line array systems. It is ideal for users who want a flexible alternative to hanging their array elements from heavy trussing.
2. Exactly which components does it connect?
- The Base: The bottom socket mounts securely to the IMP194 pole, the IMP211 adjustable pole, or the SPL110 tripod stand.
- The Tops: The upper rigging tracks slide directly into and support Imperio or Imperio Pro loudspeaker modules.
3. Why do I need it if I already have a pole?
The T-adapter gives you total control over audience sound coverage. By offering four distinct tilt angles (0°, 4°, 8°, or 12°), you can point your high-frequency drivers down toward the listening plane. This stops audio energy from reflecting off the ceiling, improving vocal clarity and keeping the volume uniform from the front row to the back of the room.
The T-adapter gives you total control over audience sound coverage. By offering four distinct tilt angles (0°, 4°, 8°, or 12°), you can point your high-frequency drivers down toward the listening plane. This stops audio energy from reflecting off the ceiling, improving vocal clarity and keeping the volume uniform from the front row to the back of the room.
