FireBase SG-1700 Smoke Generator w/ Flight Case and 5L Bottle

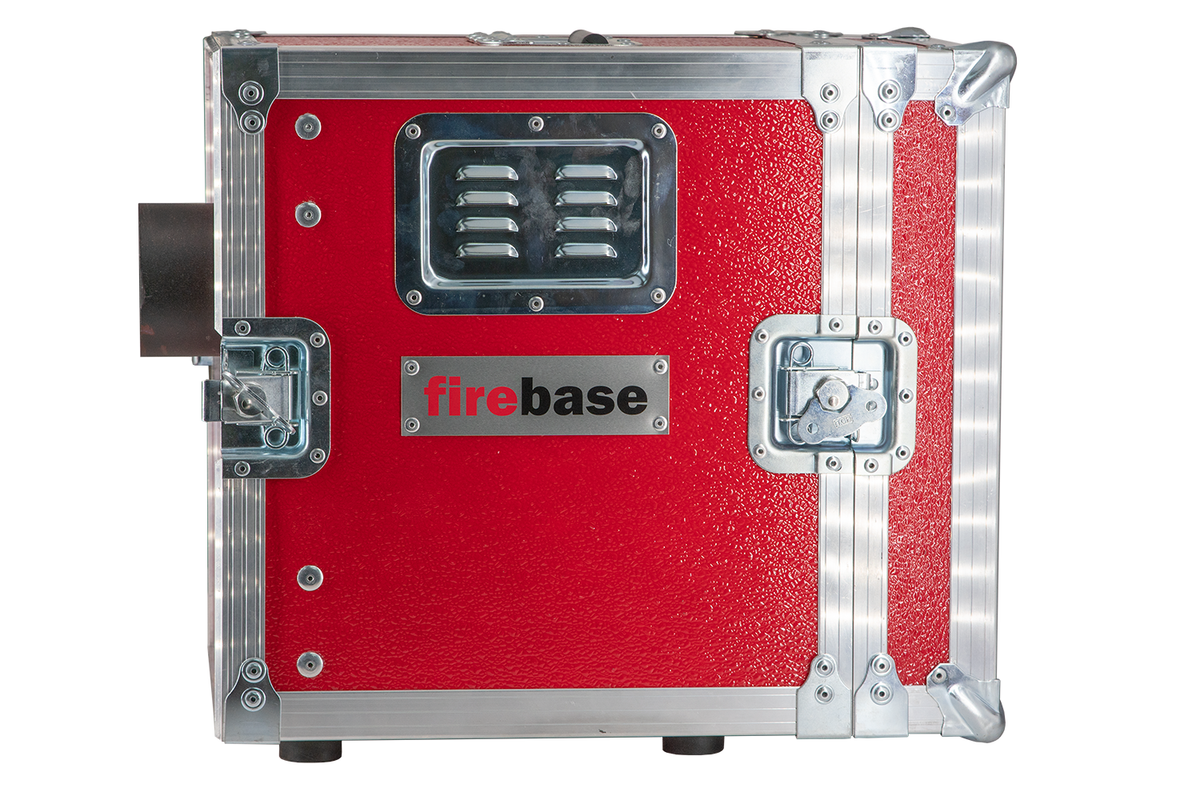

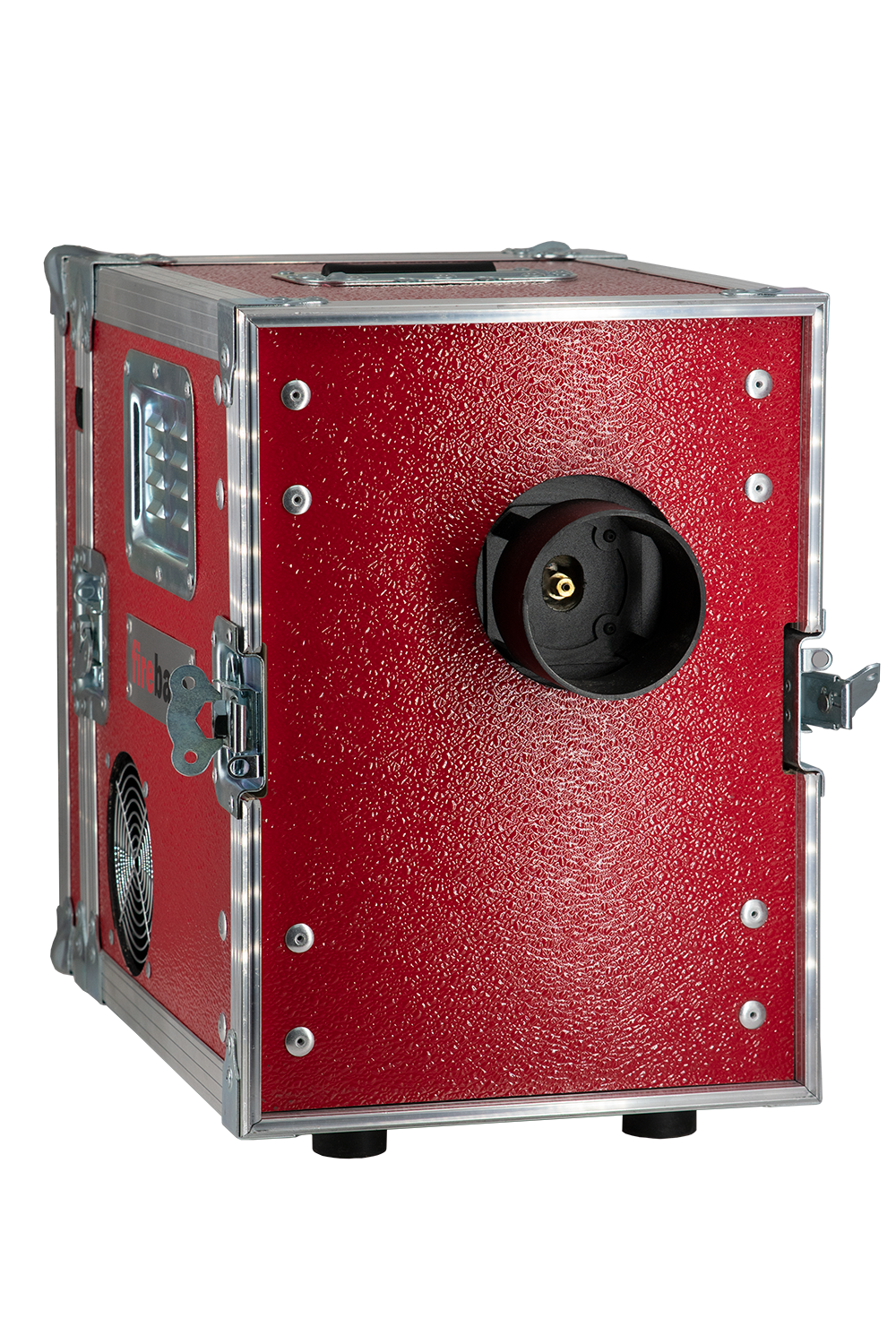

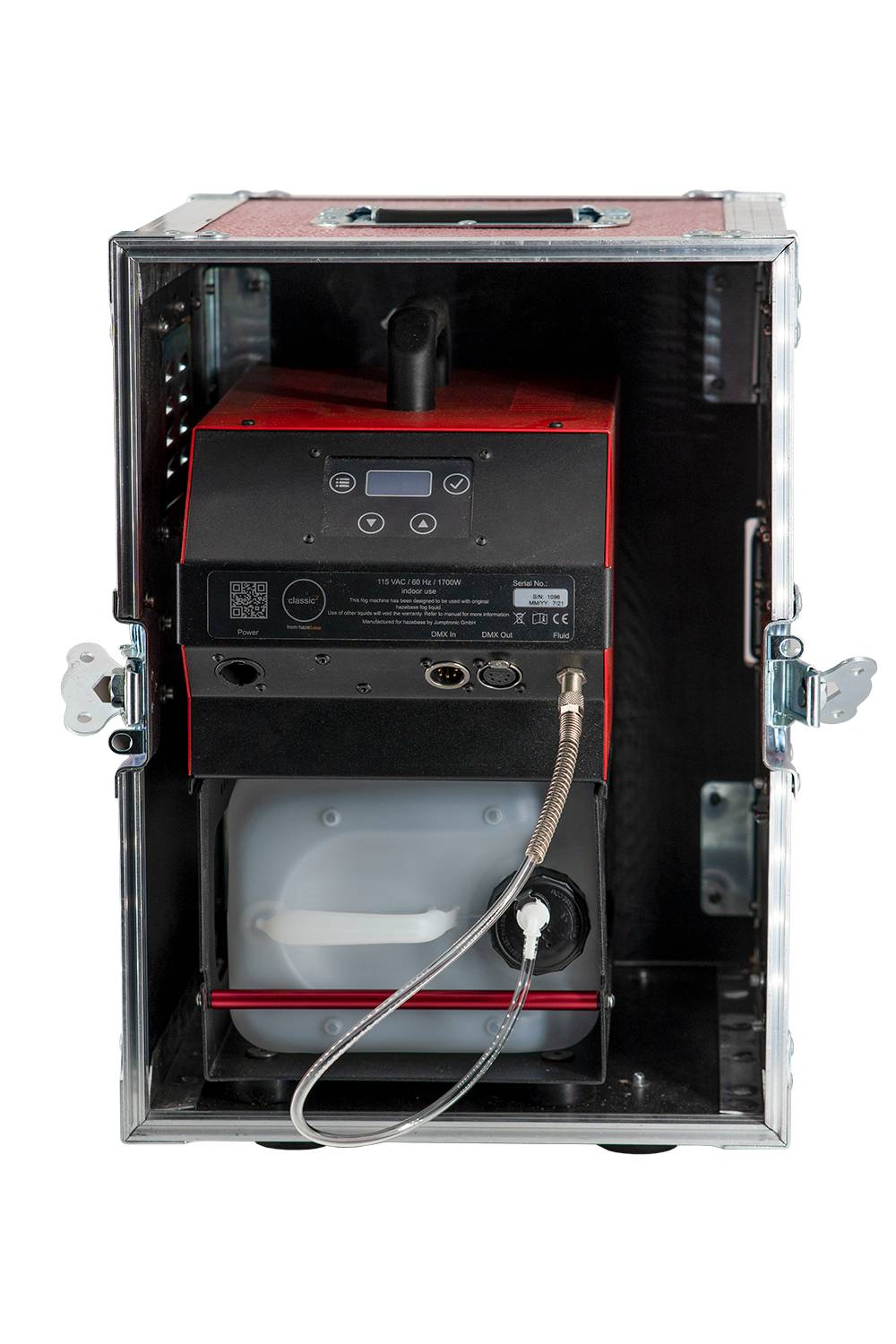

FireBase SG-1700 Compact Continuous Smoke Generator - High Output, 1700W (40,000 CFM) FireBase 1700 Compact and Powerful Smoke Generators with continuous output and a full 2 year warranty. FireBase is manufactured in Germany, and is characterized by high reliability and robustness. All FireBase units are fully programmable with digital controls. There is no scenario you can through at FireBase that it will not dominate the competition. The German engineering and extreme efficiency of these smoke generators sets them apart from anything else available. The Cased Units are completely housed in a custom case which makes for easy setup and transportation as well as protection for years to come.

• DMX serial production
• 1700W / 110 Volt / 40,000 CFM
• Integrated timer
• SG-XLR commander wired remote
• Adjustable with digital technology
• Continuous fogging possible
• High output
• Highly Efficient
• Extreme Smoke to Low Power Ratio
• Continuous High Volume Smoke
• Small to Large Scale Training

Specifications

Physical
Length: 22"
Width: 13"
Height: 19"
Net Weight: 58.8 Lbs.

Performance
Fluid consumption (100%): 120 ml/min (1%): 35 ml/min
Maximum operating time, maximum output: 40 Min.
Ready time: 12 Min.

Control and Programming
Control options: DMX / RDM, Cable remote control, radio remote control (optional), integrated timer, stand-alone
Fog Variable output control, 0-100%
DMX channels: 1

Protocols: DMX512, RDM, Modbus RTU, JT remote

Construction
Housing: Metal
Color: Red and Black
Fluid pump: Dual oscillating piston, high pressure
Fluid reservoir: 5L drop-in reservoir

Installation
Mounting: Standing
Orientation: Up to +/-40° from horizontal

Connections

AC Power: PowerCON TRUE1
DMX, link mode in/out: 5-pin locking XLR

Electrical
US Model:AC power: 120 V, 60 Hz
Main fuse: 15A, 250 V
Typical power and current: 1700 W

*Measurements made at nominal voltage. Allow for a deviation of +/- 10%.:


Included Items

• Power input cable: PowerCON TRUE1
• Fluid reservoir, 5L Tank
• SG-XLR commander wired remote

Optional Accessories

Fog Scent Additives

Dial Remote

12' XLR cable

Approved fluids*:
Water-Based Training Smoke Fluids

*Various sizes available - contact us or see 'Fluids' product pages for details

Manual

Cleaning
