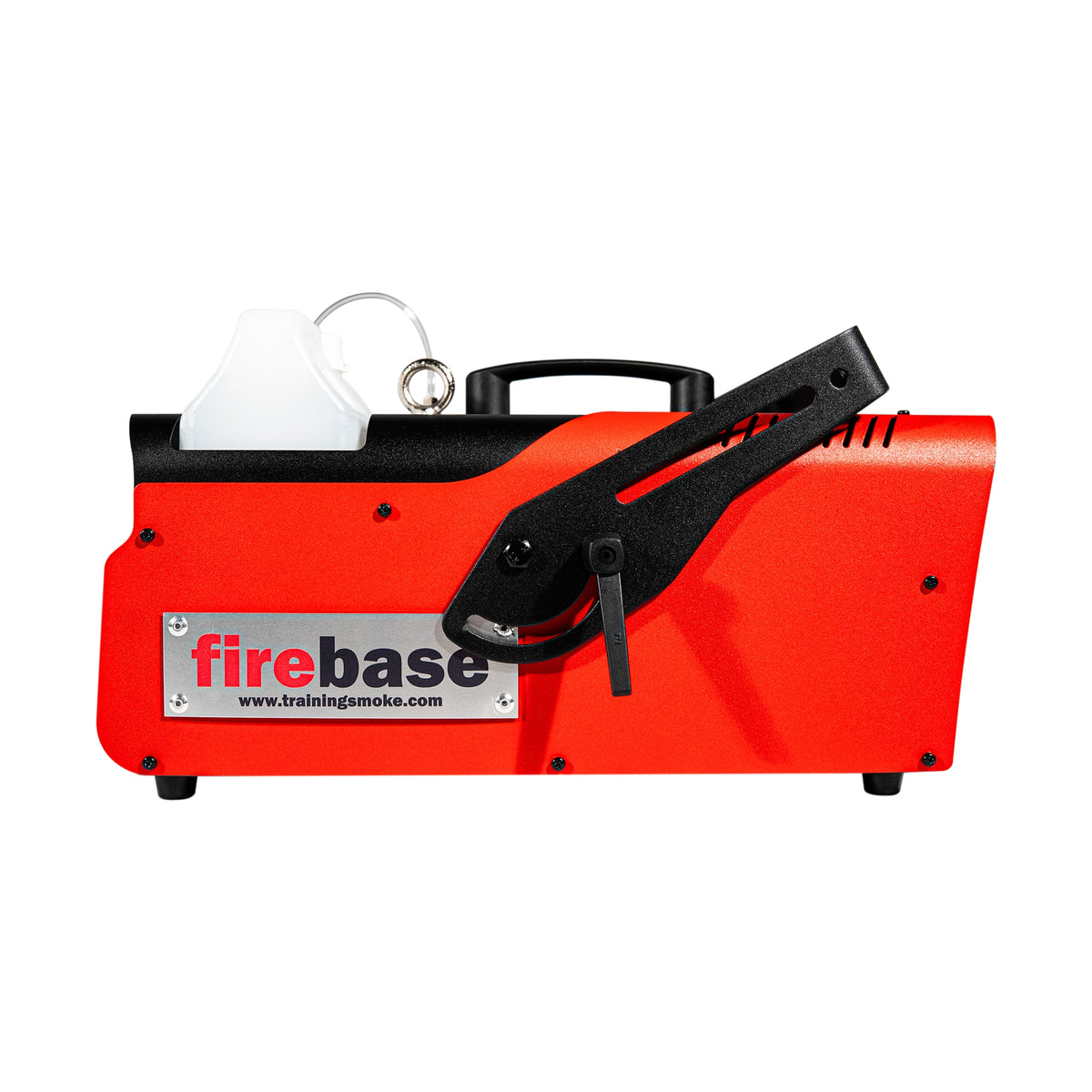

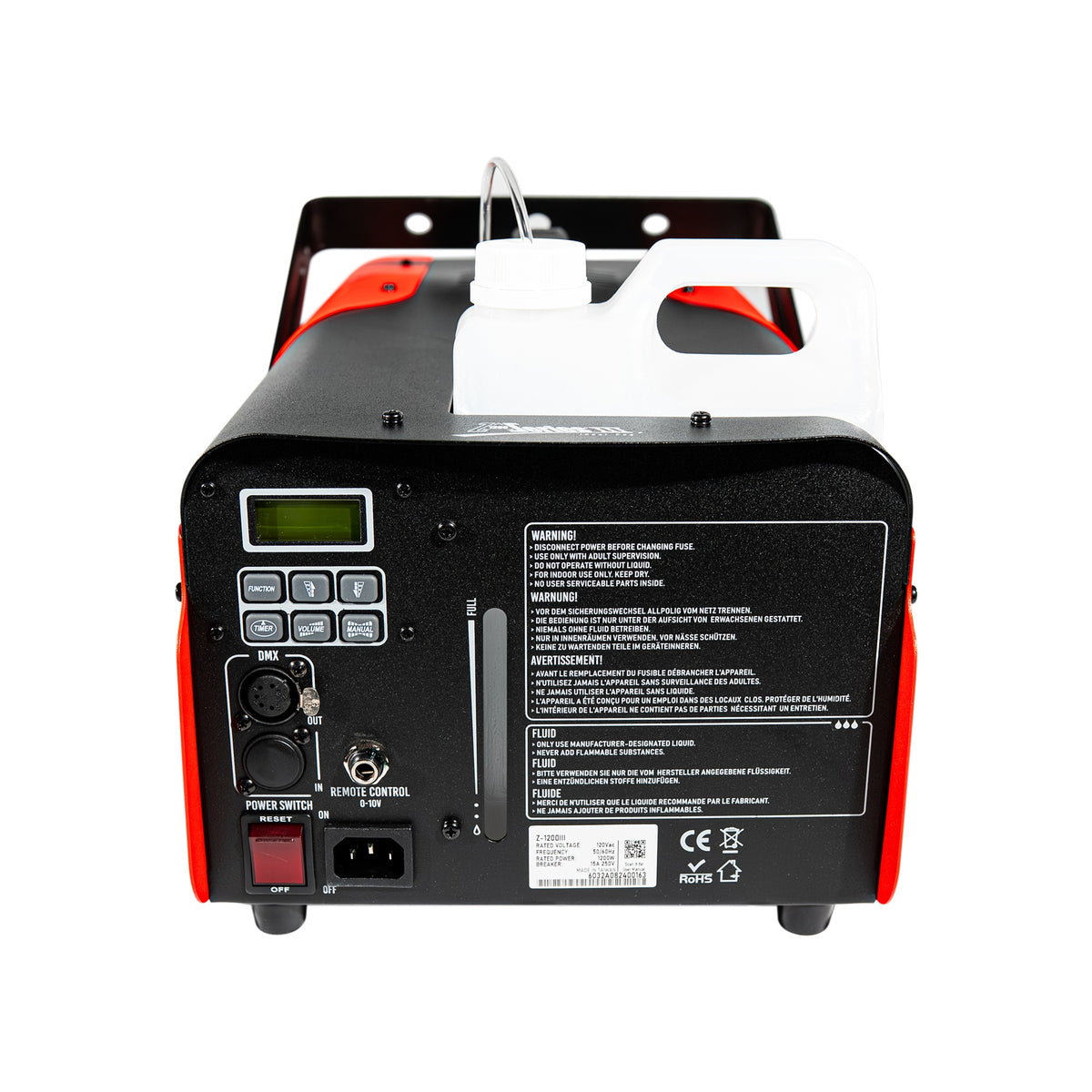

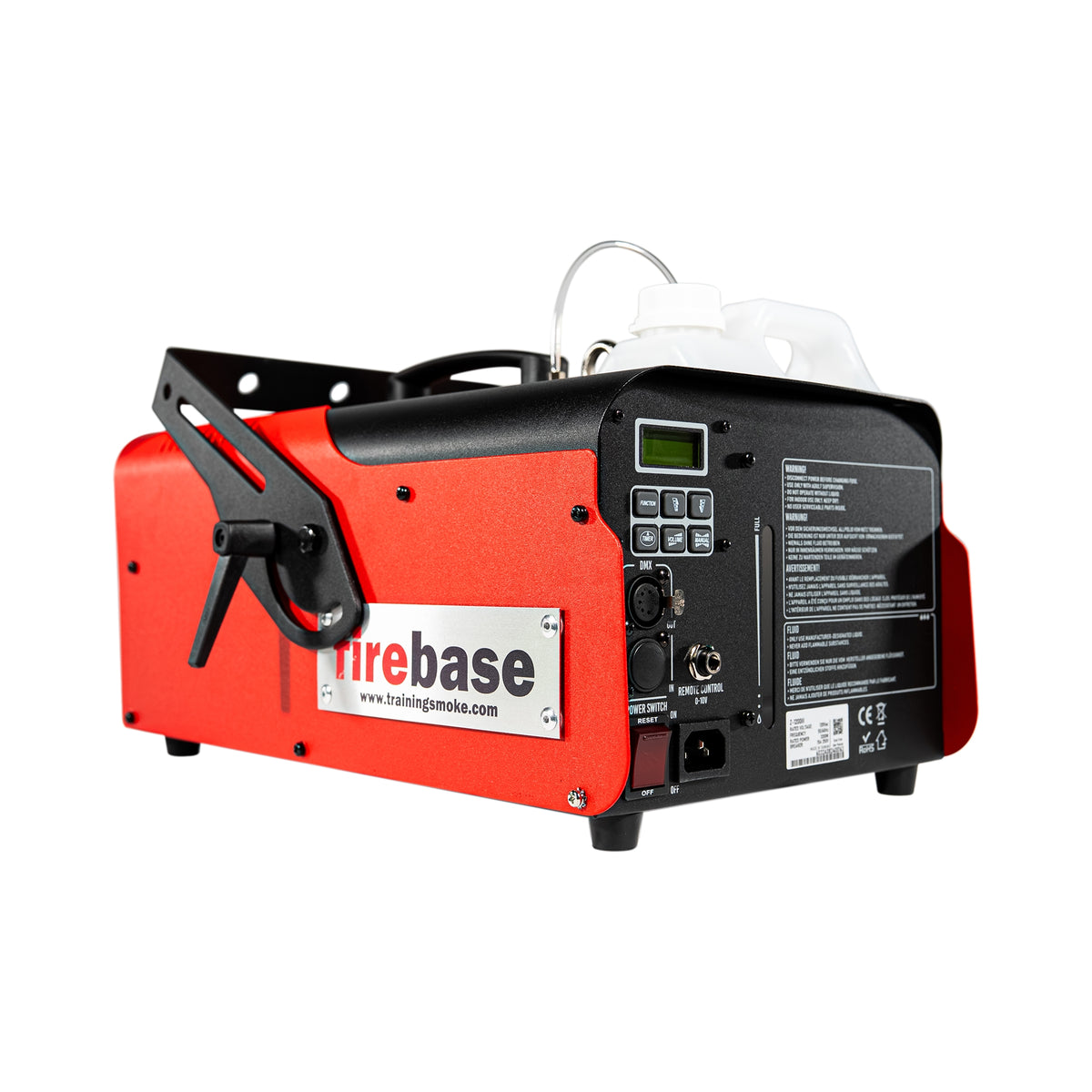

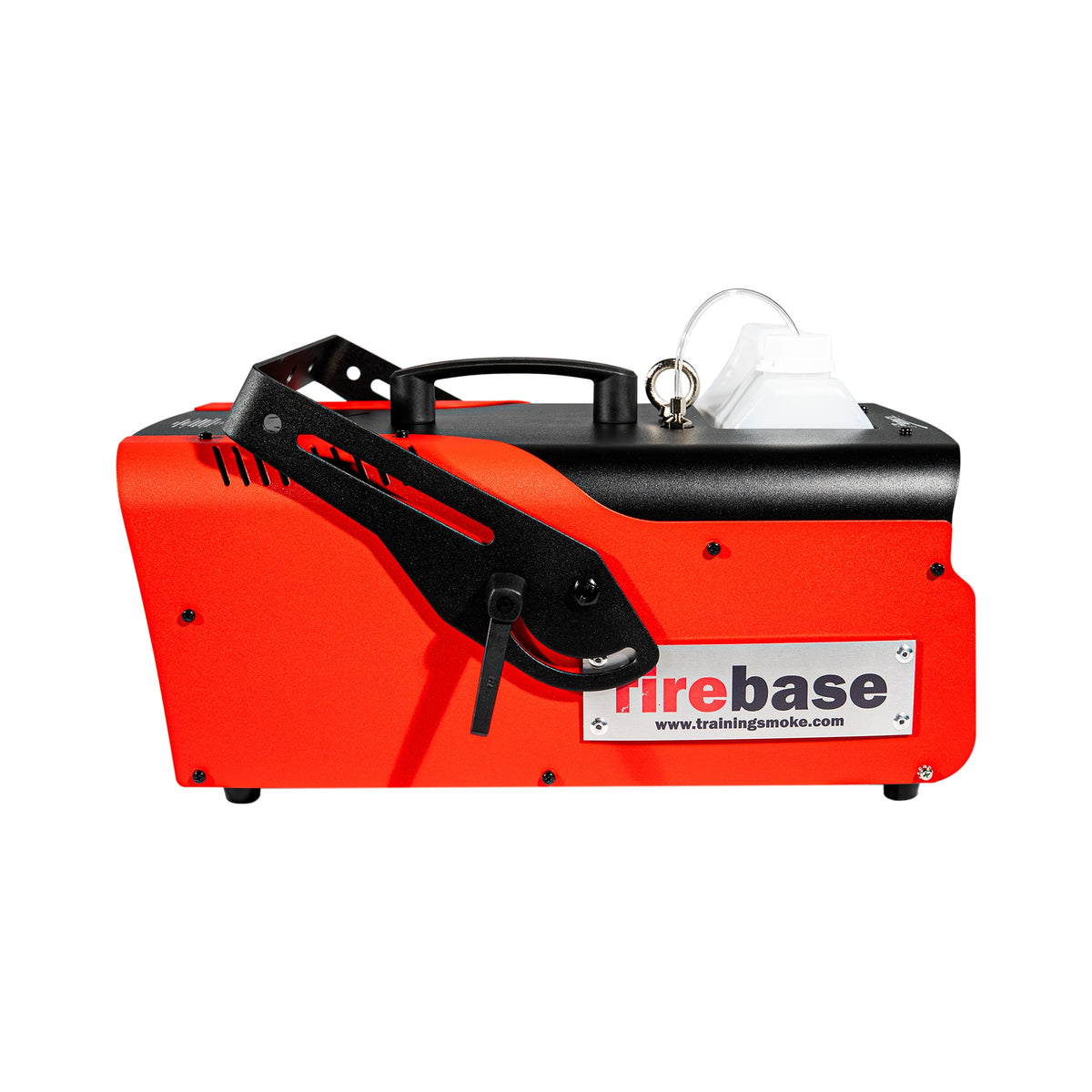

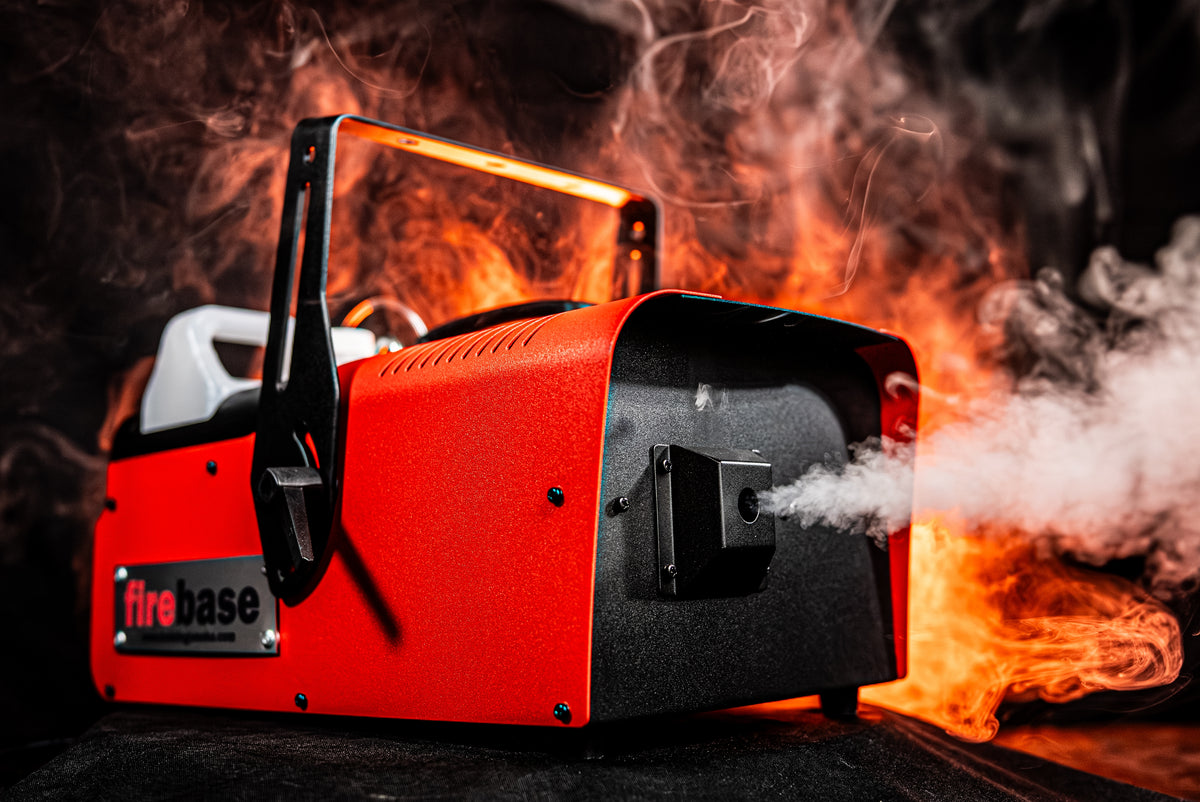

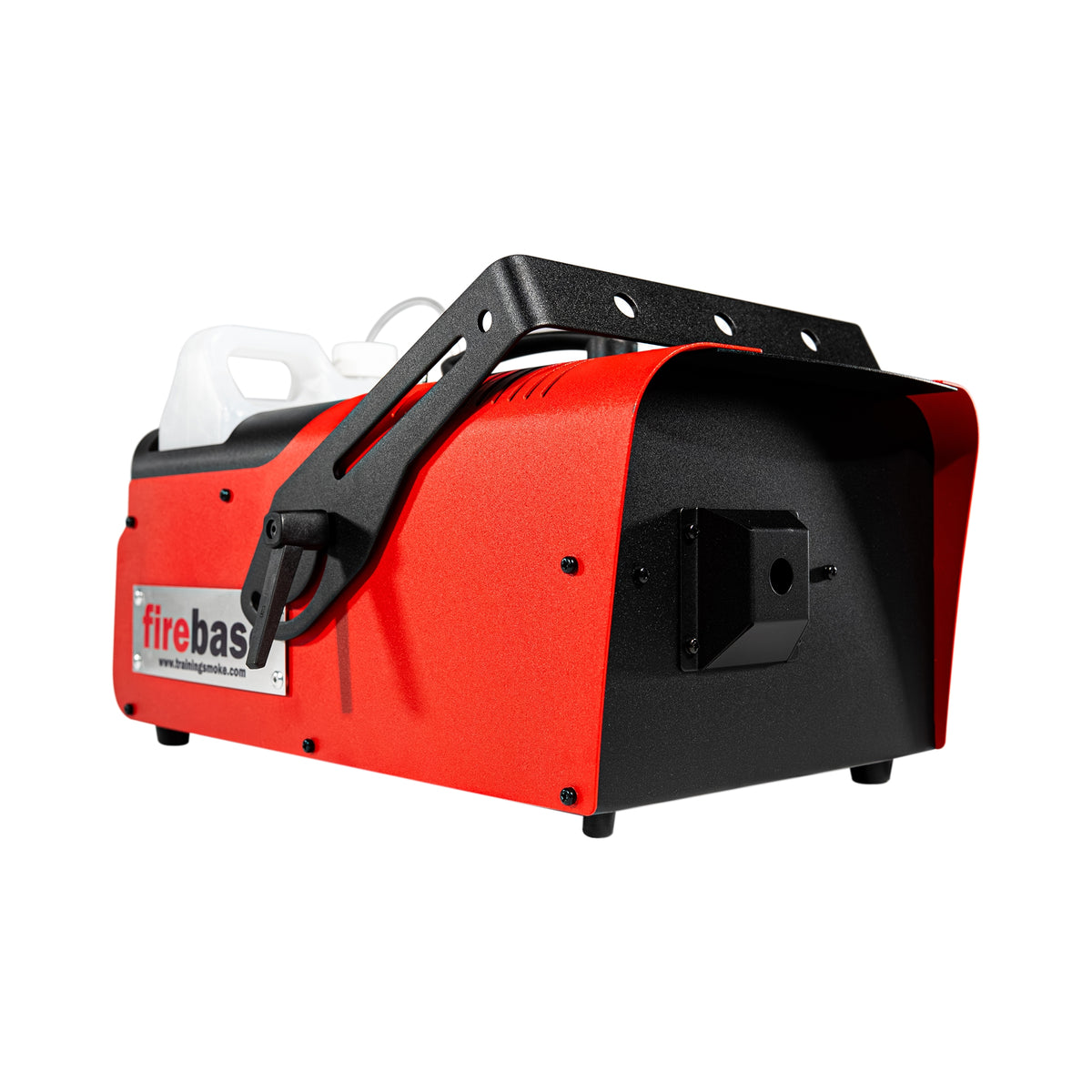

SG-Z1200 - Continuous Smoke Generator Machine - 1,200 Watts - 18,000 CFM

The Z-Series dominates the entry level price range small to medium scale smoke generator market with high-performance fog output and high tech features. The Z-Series is equipped with the ECO thermal control system and the patented UNICORE heater technology. The systems electronic thermostat can detect even a very slight temperature drop and will automatically re-heat the machine, which results in a more consistent stream of smoke. The Z-Series comes with a high quality pump and electronic low-fluid detector also known as Thermal Cut-Off (TCO) which automatically shuts off the pump when the fluid level is low, protecting the machine from damage. The Z1200 heater core can easily be taken out from the heater block for a quick and easy cleaning to prevent clogging and insure trouble-free performance. The Z1200 has on-board DMX-512 , RDM and integrated timer controls.

Specifications

• Higher Output / Low Fluid Shut Off
• Easily Removable Heater Core
• Integrated DMX Control
• 1200 Watts / 110 Volt / 18,000 CFM
• Warm up time: approx. 8 min.
• Fluid tank capacity: 0.66 Gal.
• Fluid Consumption: MAX - 60 min./Gal. 40 min. / full tank
• Dimensions: 18.0" x 9.8" x 10
• Weight: 24.0 lbs.
